Quick Delivery Stock Items- Ready for Site Operation

Below are some of our stock items that can be purchased immediately. The items below can also be modified with custom instrumentation, paint job and customized per your specification.

Mobirise

Glycol Reboiler

Job# C-3710: 750,000 BTU/HR Glycol Reboiler c/w Packed Still Column, Removable Firetube, Reflux Coil, Stack with Downdraft Diverter Cap, and Fuel Gas Preheat Coil
Reboiler Size: 36" OD x 13'-0" Long
Firetube: 12 3/4" OD x 25'-6" Long, Removable 8,525 BTU/hr/ft² Flux Rate
Still Column: 12 3/4" OD x 8'-0" Long c/w 1" C.S. Pall Ring Packing, Reflux Coil and 1" NPS
Accumulator: 30" OD x 13'-0" Long


Contact for Pricing
Mobirise

Vertical Separator Package

Job# C-811: 30" O.D. 10'-0" S/S 3-Phase Vertical Separator (Sweet Service) Package w/ 500 Gallon Methanol Tank & Texsteam Methanol Pump
Skid: 8' Wide X 13' Long
Building: 8' X 9' X 7'-6" Shed Type Roof
Design Pressure: 1440 Psig
Design Temperature: -18/130ºF
C.A: 1/16"
Inlet/Outlet: 4" CL 600 RF
Instrumentation: Fisher Inlet Control Valve, Taylor PSV, Nupro Pump Relief Valve, Fisher Pressure Switch & Controller, SOR highlevel shutdown, Penberthy Level Gauges, North Star Senior Orifice Meter Run, Alberta Y Strainers, Clif Mock Turbine Meter, Norriseal Dump Valves, Plainsman Tank Level Gauge, CCI Thermal Building Heater

Contact for Pricing Download P&ID
Mobirise

Vertical Separator Vessel

Job# C-3008: 16" OD x 7'-6" S/S vertical separator - ASME Section VIII Div. 1 designed & registered in AB, BC and SK w/ CRN.
Service: Alberta Sour
Design pressure: 1440 psig
Design temperature: -20° to 130°F
C.A: 0.085"
Inlet / Outlet: 3" CL 600 RF
Shell: SA-106B
Heads: SA-516-70N
Flanges: SA-105N
Skirt: SA-53B
Base Plate & Internals: SA/ CSA-G40.21-44W, SA-234-WPB

Contact for Pricing
Mobirise

Fuel Gas Scrubber

Job# C-3536 / 3552: 8 5/8" OD x 2'-0" F/F Flat End Fuel Gas Scrubber - ASME Section VIII Div. 1 designed & registered in AB w/ CRN.
Service: Sweet
Design pressure: 150 psig
Design temperature: -20° to 200°F
C.A: 1/16"
Inlet / Outlet: 1" CL 3000 NPT / 2" CL 3000 NPT
Shell: SA-53B
Heads: SA-516-70N Flat Plate

Contact for Pricing
Mobirise

Senior Meter Run

Job# C-3433: 2" CL 600Senior AGA 2000 Sch 80 Custom Meter Run

Contact for Pricing
Mobirise

Indirect Line Heater

Job# C-2924: 750,000 BTU/HR Line Heater w/ Coil: 3134 psig X -20/200°F X 1/8" C.A. registered in AB & BC w/ CRN
Preheat Heating Surface: 41.26 ft2, Reheat Heating Surface: 61.75 ft2
Heater Size: 36" OD x 12'-0" Long
Stack: 12 3/4" OD X 14'
Firetube: 12 3/4" OD x 30-0" Long
Coil Bundle: Inlet & Outlet: 3" CL 1500 RTJ

Contact for Pricing
Mobirise

Coil Bundle

Job# C-2925: 3375 psig X -20/200°F X 1/16" C.A. registered in AB w/ CRN
Preheat Heating Surface: 62.01 ft2, Reheat Heating Surface: 98.38 ft2
Coil Bundle: Inlet & Outlet: 3" CL 1500 RTJ

Contact for Pricing
Mobirise


Skid

Job# C-3024: Full Skid : 6' X 12' Skid C6 @ 8.2#. Building Size 6' X 8'.
Checkered Plate: 3/16" thk

Contact for Pricing
Mobirise

Horizontal Separator Vessel Only

Job# C-559:  16" OD x 5'-0" S/S horizontal separator - ASME Section VIII Div. 1 designed & registered in Alberta w/ CRN.
Service: Sweet
Design pressure: 150 psig
Design temperature: -20° to 100°F
C.A: 1/16"
Inlet / Outlet: 2" CL 150 RF / 2" CL 3000 NPT
Shell: SA-106B
Heads: SA-516-70N
Flanges: SA-105N
Saddles: SA-36
Vortex Breaker and Lifting Lugs: SA-44W



Contact for Pricing
Mobirise

Fuel Gas Scrubber Vessel Only

Job# C-900: 12 3/4" OD x 5'-0" S/S Fuel Gas Scrubber - ASME Section VIII Div. 1 designed & registered in AB & BC w/ CRN.
Service: Sweet
Design pressure: 200 psig
Design temperature: -20° to 130°F
C.A: 1/16"
Inlet / Outlet: 1" CL 3000 NPT
Shell: SA-106B
Heads: SA-516-70N
Flanges: SA-105N
Skirt: SA-53B
Float Shield: SA-44W
Inlet Divertors: SA-234-WPB
Mistex: 304SS


Contact for Pricing
Mobirise

Glycol Reboiler

Job# C-2062: 250,000 BTU/HR Glycol Reboiler c/w Packed Still Column, Firetube and Fuel Gas Preheat Coil
Reboiler Size: 20" OD x 7'-6" Long
Firetube: 8 5/8" OD x 14'-0" Long, Removable
Still Column: 8 5/8" OD x 6'-0" Long c/w 1" C.S. Pall Ring Packing
Stripping Column: 8 5/8" OD x 2'-11" Long c/w 1" C.S. Pall Ring Packing
Accumulator: 20" OD x 7'-6" Long
Smoke Stack: 8 5/8" OD x 8'-0" Long
Flame Arrestor: Zirco Burner Assembly 250,000 Btu/Hr Flame Arrestor

Contact for Pricing
Mobirise

Vertical Separator Vessel Only

Job# C-2747:  20" OD x 8'-0" S/S vertical separator - ASME Section VIII Div. 1 designed & registered in AB, BC and SK w/ CRN.
Service: Sweet
Design pressure: 1440 psig
Design temperature: -20° to 130°F
C.A: 1/16"
Inlet / Outlet: 3" CL 600 RF
Shell: SA-516-70N
Heads: SA-516-70N
Flanges: SA-105N
Skirt: SA-53-B
Base Plate: SA/ CSA-G40.21-44W
Mistex: 316L SS
Inlet diverter & Float Shield Included


Contact for Pricing
Mobirise

Vertical Separator Vessel Only

Job# C-2748: 20" OD x 8'-0" S/S vertical separator - ASME Section VIII Div. 1 designed & registered in AB & BC w/ CRN.
Service: Sour
Design pressure: 1440 psig
Design temperature: -20° to 130°F
C.A: 1/8"
Inlet / Outlet: 3" CL 600 RF
Shell: SA-516-70N
Heads: SA-516-70N
Flanges: SA-105N
Skirt: SA-53-B
Base Plate: SA/ CSA-G40.21-44W
Mistex: 316L SS
Inlet diverter & Float Shield Included


Contact for Pricing
Mobirise

Vertical Separator Vessel Only

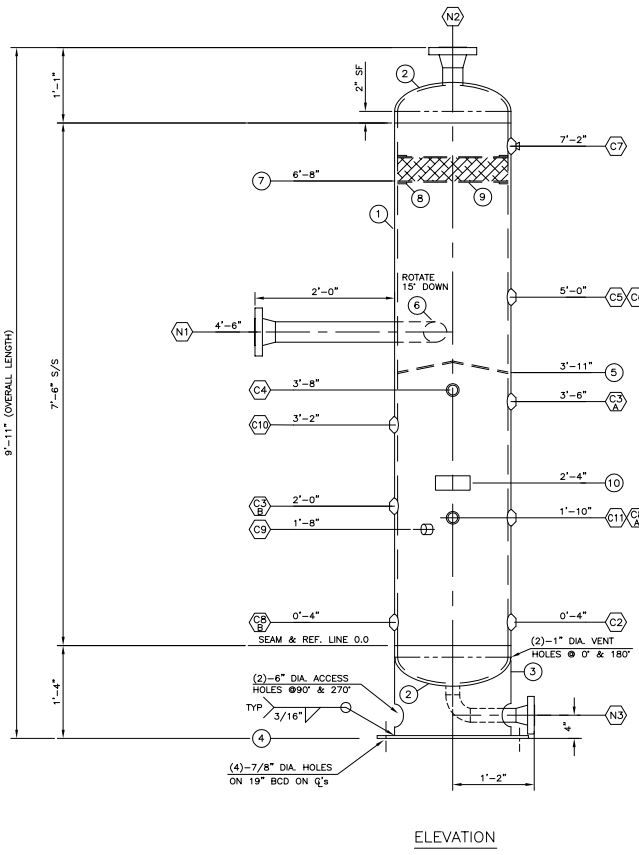

Job# C-2876: 16" OD x 7'-6" S/S vertical separator - ASME Section VIII Div. 1 designed & registered in AB, BC and SK w/ CRN.
Service: Sour
Design pressure: 1440 psig
Design temperature: -20° to 130°F
C.A: 1/8"
Inlet / Outlet: 3" CL 600 RF
Shell: SA-106B
Heads: SA-516-70N
Flanges: SA-105N
Skirt: SA-53-B
Base Plate: SA/ CSA-G40.21-44W
Mistex: 316L SS
Inlet diverter & Float Shield Included

Contact for Pricing

More Stock Items coming soon !

More stock items are available. Contact our sales office for any items or service you may need.
